• Volumetric dividing system without pressing the dough.

• The divider can process the most sensitive dough type like if it was divided by hand.

• Dough hopper and outer lids are made of stainless steel.

• Weight can be set up as manually or automatically.

• Dividing capacity is 20 - 40 pieces of dough per minute.

• Automatic lubrication system. Oil level indicator and level warning alarm.

• Dough funnels of different sizes can be manufactured.

• Optionally. teflon coating can be applied inside and outside the tunnel.

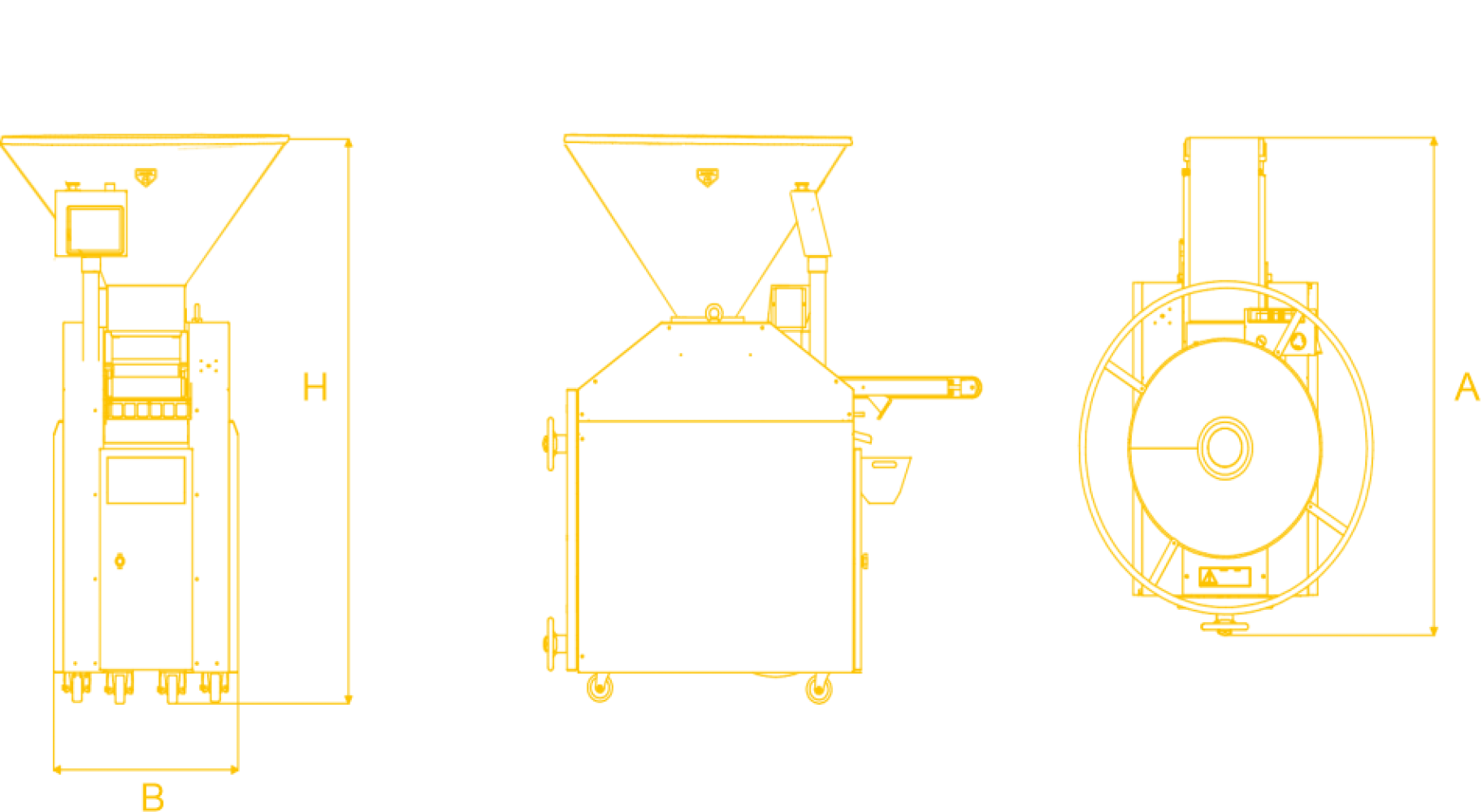

DOUBLE PISTON + VOLUMETRIC DIVIDER - Teknik Resim

TECHNICIAL SPECIFICATIONS

SLM VD-2000

CAPACITY

2400-4800 Pcs

ELECTRICAL POWER

2,2 kW

ELECTRICAL CONNECTION TYPE

380v50hz N+Pe 3Phase

EXTERNAL DIMENSIONS

(A)1500mm (B)950mm (H)1580mm

PISTON DIAMETER 60mm

30-150gr (-/+10gr)

PISTON DIAMETER 70mm

55-300gr (-/+10gr)

PISTON DIAMETER 80mm

80-400gr (-/+10gr)

PISTON DIAMETER 90mm

90-400gr (-/+10gr)

PISTON DIAMETER 110mm

100-600gr (-/+10gr)
